Indonesia---3-in-1 Semi Automtaic Aerosol Filling Machine

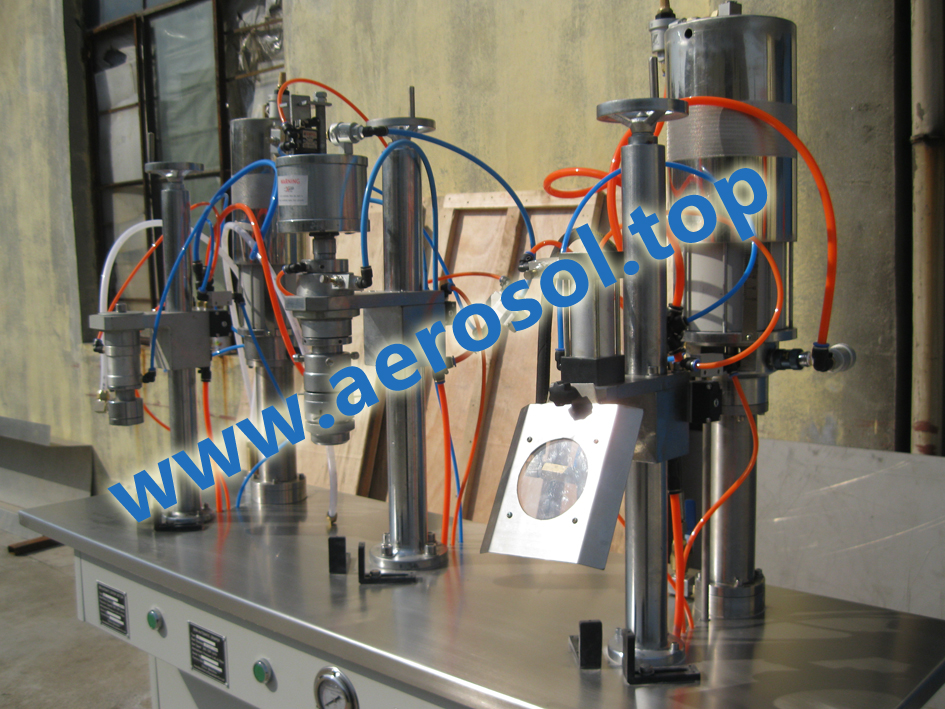

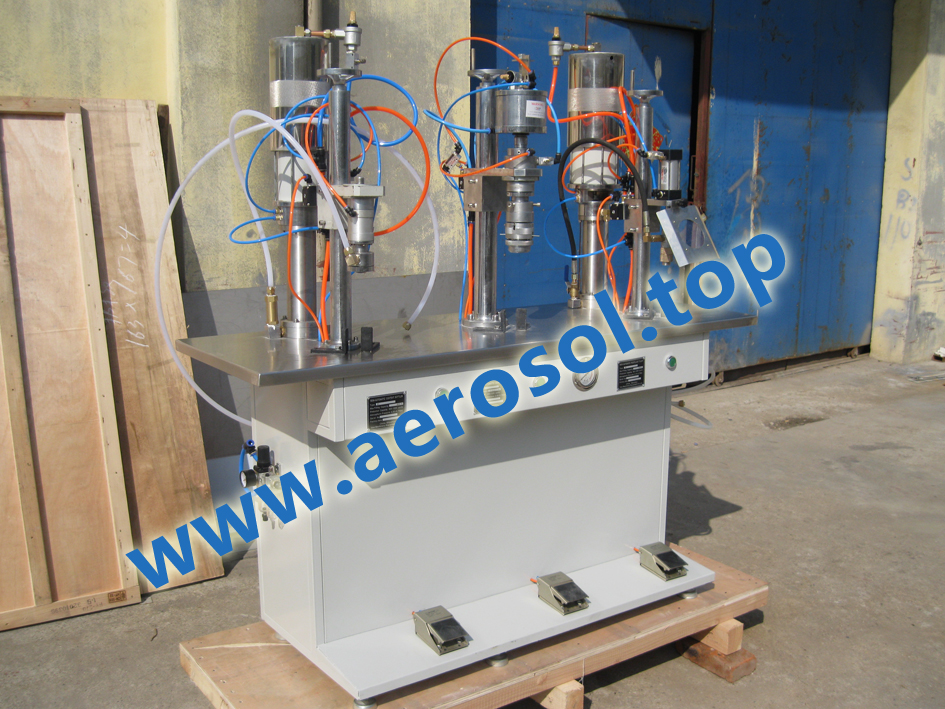

ASL-3B Semi-automatic Aerosol Filling Machine
Description:
ASL-3B is made from the former semi-automatic aerosol filling machine.It asse-mbles the liauid filling, inflate and seal on the same table, it needs only one worker to operate it.It has high speed, high-accuracy and good stabilization.Good choice for the midium-sized and small-scale company.
Series Semi-automatic Crimper:
Size of aerosol valve to be adapted:1〞
It is liable in crimping quality and easy to adjust. Moreover, it has an over-size cylinder, thus enable it to effect crimping at 0.25-0.3Mpa air source pressure as well.Semi-automatic Propellant Bottler:
Maximum filling capacity:20, 50, 100, 400, 600ML.Production capacity:1200cans/hr, calculated at 100g/cab.
This bottler is mainly used to fill propane, butane, freon, dimethyl ether, carbon dioxide, nitrogen, oxygen, compressed air and 134a, etc. The main seals are maed of imputed material. Filling can be maed with various valves. A large capacity booster pump is used for bi-directional pressurization. Therefore, filling is quick and metering is accurate.Specifications:
Model
ASL
Filling capacity
20-450ml (can be customized)
Filling accuracy
≤±1%
Production capacity
800-1200 cans/hr
Air source
0.6Mpa-0.8Mpa clean and stable air source
Can Height
60~350
Can Diameter
Φ16~Φ100
Weight
about 250kg
Dimension(L×W×H)
900×500×1500
