Description : Automatic Spray PU-Foam Filling Machine

APU Automatic PU-Foam Aerosol Filling Machine is used in polyurethane foam sealing work.

Previous : Automatic Gas Cartridge Filling Machine

Next : Automatic Spray Paint Aerosol Filling Machine

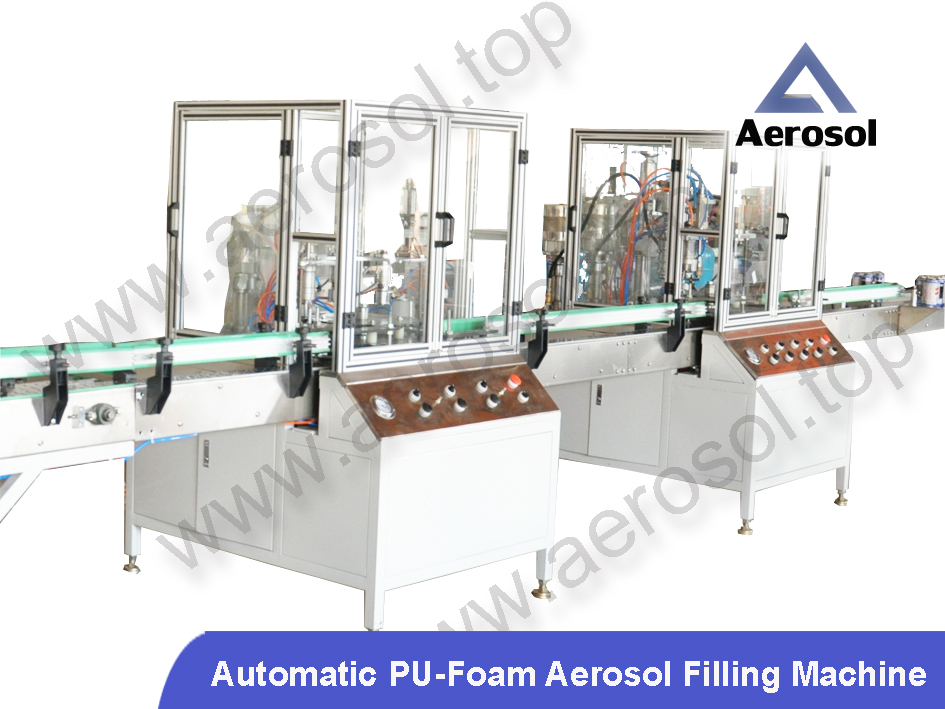

APU Automatic PU-Foam Aerosol Filling Machine

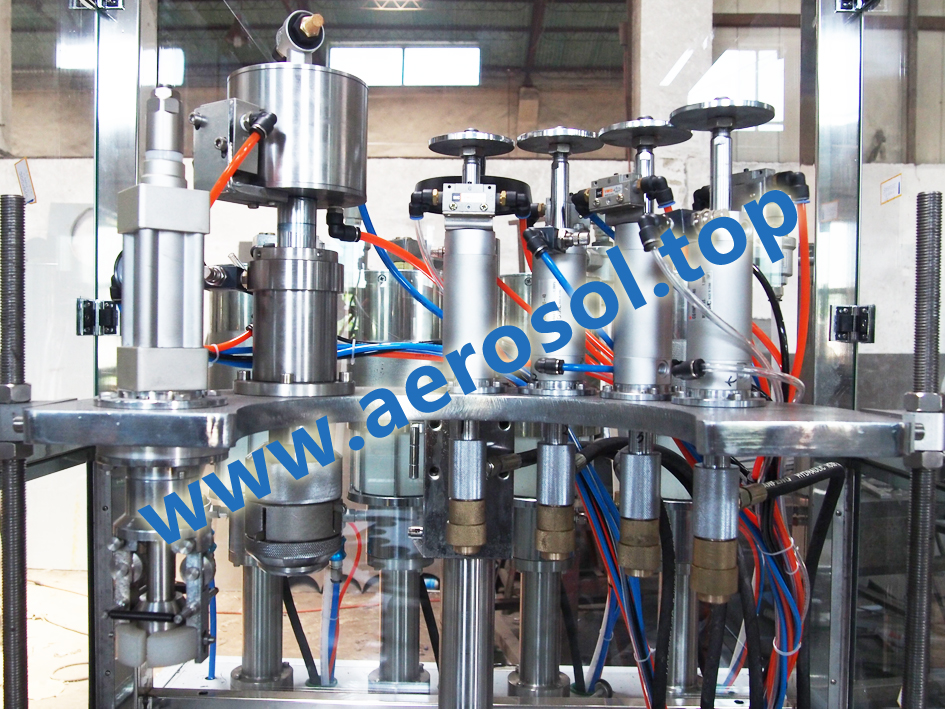

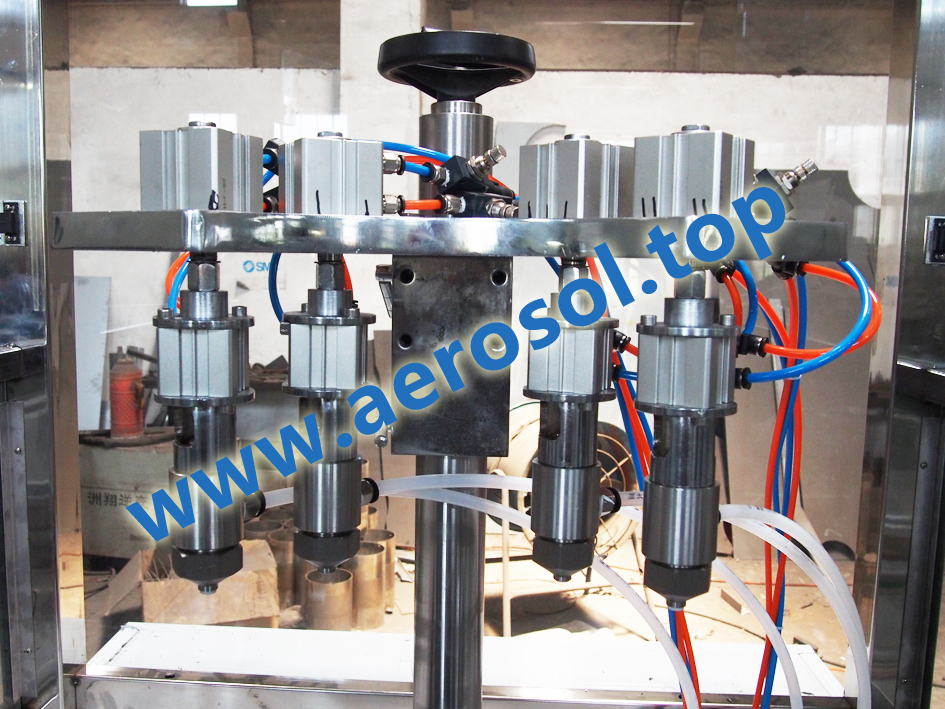

APU Automatic PU-Foam Aerosol Filling Machine is used in polyurethane foam sealing work. It contains cap unscrambler, four heads liquid filler, sealer, gas inflator (1 capping head and 3 or 4 gas inflating heads ), ink-jet printer, screw ring presser and swing vibration machine and so on. Full automatic valve feeding equipment, full automatic big cap presser, full automatic weighting machine can be selected optionally. This machine is easy to operate and with high security and measuring accuracy.

Model

APU

Filling capacity

15-750ml (can be customized)

Filling accuracy

≤±1%

Propellant filling capacity

15-750ml (can be customized)

Propellant filling accuracy

≤±1%

Capping accuracy

≤1%

Production capacity

2400-3600 cans/hr

Air source

0.6Mpa-1Mpa clean and stable air source

Max air consumption

3 M³/min

Can Height

80~330

Can Diameter

Φ35~Φ80

Weight

about 2000kg

Dimension(L×W×H）

12000×1500×2100

Yangzhou Aerosol Machinery Equipment CO.,LTD

Model	APU
Filling capacity	15-750ml (can be customized)
Filling accuracy	≤±1%
Propellant filling capacity	15-750ml (can be customized)
Propellant filling accuracy	≤±1%
Capping accuracy	≤1%
Production capacity	2400-3600 cans/hr
Air source	0.6Mpa-1Mpa clean and stable air source
Max air consumption	3 M³/min
Can Height	80~330
Can Diameter	Φ35~Φ80
Weight	about 2000kg
Dimension(L×W×H）	12000×1500×2100
